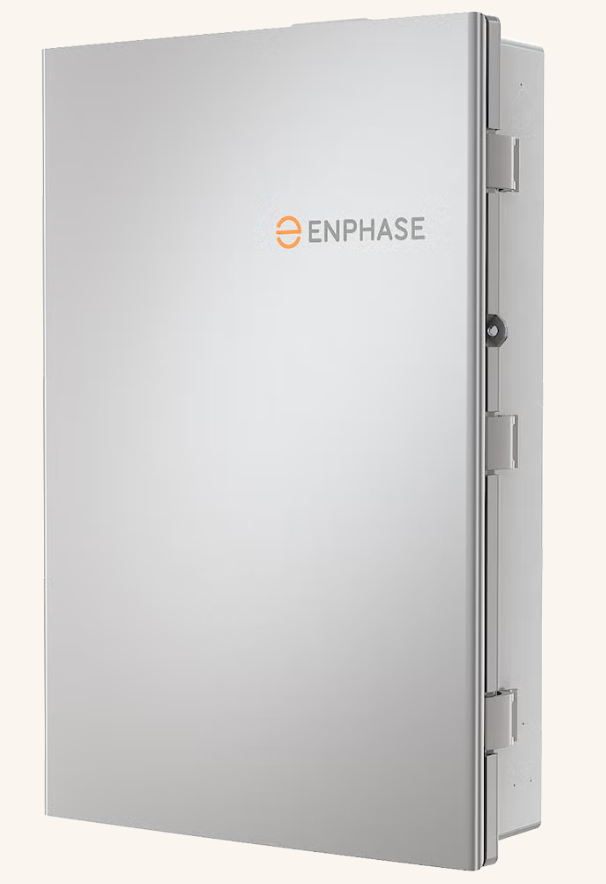

Enphase IQ System Controller 3 INT SKU: SC100G-M230INT

SKU: SC100G-M230INT

IQ System Controller 3 INT

The IQ System Controller 3 INT is only required if backup is needed. It connects the home to grid power, the IQ Batteries, and solar PV with microinverters. It provides microgrid interconnect device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure.

Categories: Batteries Li Ion Service Brand: Enphase

Product Description

Details

One consolidated unit for PV, DB, and micro-grid interconnection device (MID)
Bundled cell modem with pre-paid 5-year data plan, three-phase IQ Relay, and System Shutdown Switch for safety
Durable IP55 enclosure
Controls safe connectivity to the grid
Automatically detects grid outages
Provides seamless transition to backup
Uses control cable for wired communication
Supports single-phase and three-phase configurations for solar and grid
Supports conduit entry from the bottom, rear, left, and right
Supports main circuit breaker up to 63 A

Technical Specification

12 DIN spaces. 10 DIN spaces for DER (PV and storage) breaker, and 2 DIN spaces for incoming mains, backup, and non-backup load breaker(s).
Maximum continuous current: 63 A per phase
Nominal voltage: 230 VAC L-N and 400 V L-L (WYE)
Single-phase backup
